PN8306,PN8307,PN8308,PN8309,PN8601,PN8604
同步整流控制器及高雪崩能力功率MOSFET，用于在高性能AC/DC反激系統中替代次級整流肖特基二極管。內置電壓降極低的功率MOSFET以提高電流輸出能力，提升轉換效率，使得系統效率可以滿足6級能效的標準，并留有足夠的裕...
產品描述：
| Product | Character | BV | RDS(on) | Standby Power | Max VDD Operation Voltage | Output Power | Dperating Mode | Package | Note |
|---|---|---|---|---|---|---|---|---|---|

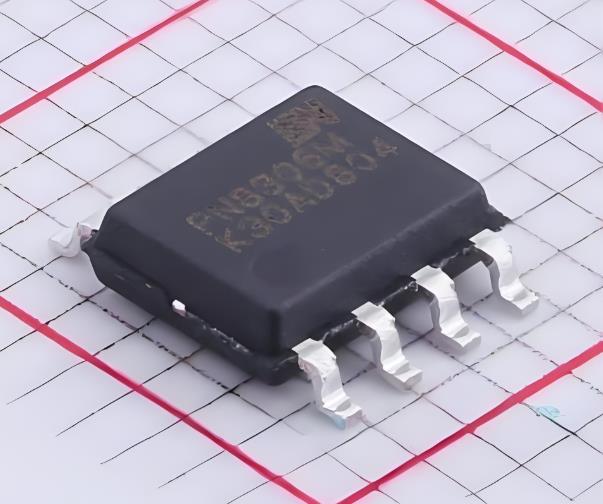

| PN8306M | SR Converter | 40V | 15mΩ | 2mW | 6.5V | 5V,2.4A | DCM | SOP8-PP/SOP8 | Charger |
| PN8306L | SR Converter | 40V | 24mΩ | 2mW | 6.5V | 5V,2A | DCM | SOP8 | Charger |
| PN8307H | SR Converter | 60V | 12mΩ | 3mW | 20V | 5~12V,3A | DCM | SOP8 | Charger |
| PN8307M | SR Converter | 60V | 20mΩ | 3mW | 20V | 5~12V,2.4A | DCM | SOP8 | Charger |
| PN8307P | SR Converter | 95V | 8mΩ | 3mW | 28V | 3.3-28V | DCM/QR | PDF5*6 SOP8 | Charger |
| PN8308H | SR Converter | 80V | 10mΩ | 5mW | 20V | 12V,3.5A | DCM/CCM | SOP8 | Adapter |
| PN8308M | SR Converter | 80V | 20mΩ | 5mW | 20V | 12V,2.5A | DCM/CCM | SOP8 | Adapter |
| PN8308L | SR Converter | 80V | 40mΩ | 5mW | 20V | 12V,2A | CCM | SOP8 | Adapter |
| PN8309M-A1 | SR Converter | 100V | 20mΩ | 8mW | 20V | 12~20V,2.5A | DCM/CCM | SOP8 | Charger/Adapter |
| PN8309M-B1 | SR Converter | 80V | 16mΩ | 8mW | 24V | 9~12V,2.5A | DCM/CCM | SOP8 | Charger/Adapter |
| PN8306H | SR Converter | 40V | 8mΩ | 2mW | 6.5V | 5V,3.4A | DCM | SOP8 | Charger |
| PN8601 | SR Converter | 120V | - | 5mW | 20V | 3.3-20V | DCM/CCM/QR | SOT23-6L | Charger/Adapter |
| PN8604 | Dull Channel SR Controller | 240V | - | 5mW | 35V | 7.5~35V | DCM/CCM | SOP8 | Adapter |
